Attributes
| Ssp Category | 90--elbow-industrial-pipe-fittings |
|---|---|
| Ssp Subcategory | street-elbow-industrial-pipe-fittings |
| Part Number | 1-4mf-46-2 |
Description
Threaded & Adapters Street Elbow, 1/4-18 MNPT x 1/4-18 FNPT, Alloy 400
Specifications
| Body Material | Alloy 400 |
|---|---|
| Connection 1 - Type | Male National Pipe Thread |
| Connection 1 - Size | 1/4-18 |
| Connection 2 - Type | Female National Pipe Thread |
| Connection 2 - Size | 1/4-18 |
| Brand Series | Threaded & Adapters |
| Shape | Elbow |
| End Connections | MNPT x FNPT |
| Production Category | 4 |
| End Connection Type | Male National Pipe Thread by Female National Pipe Thread |

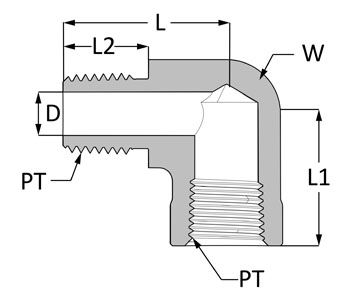

| D | 0.28 in |
| L | 1.09 in |
| L1 | 0.88 in |
| L2 | 0.56 in |
| PT | 1/4-18 |
| W Wrench Flat | 3/4 in |
