Attributes
| Ssp Category | 45-pipe-elbow |
|---|---|
| Ssp Subcategory | 45--street-elbow-industrial-pipe-fittings |
| Part Number | 3-8mf-45-1 |
Description
Threaded & Adapters 45° Street Elbow, 3/8-18 MNPT x 3/8-18 FNPT, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Male National Pipe Thread |
| Connection 1 - Size | 3/8-18 |
| Connection 2 - Type | Female National Pipe Thread |
| Connection 2 - Size | 3/8-18 |
| Brand Series | Threaded & Adapters |
| Shape | Elbow |
| End Connections | MNPT x FNPT |
| Production Category | 1 |
| End Connection Type | Male National Pipe Thread by Female National Pipe Thread |

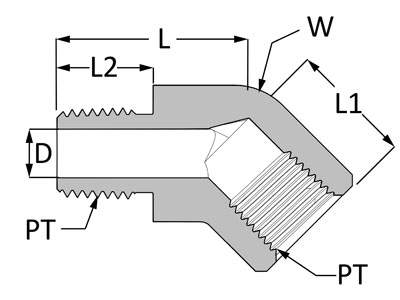

| D | 0.41 in |
| L | 1.06 in |
| L1 | 0.72 in |
| L2 | 0.56 in |
| PT | 3/8-18 |
| W Wrench Flat | 7/8 in |
