Attributes
| Ssp Category | pipe-swivel-fittings-industrial-pipe-fittings |
|---|---|
| Ssp Subcategory | pipe-swivel-45-male-elbow-industrial-pipe-fittings |
| Part Number | ps16me-45-1-1 |
Description
Pipe Swivel 45° Male Swivel Elbow, 1-11 1/2 NPSM x 1-11 1/2 MNPT, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Female Pipe Swivel |
| Connection 1 - Size | 1-11 1/2 |
| Connection 2 - Type | Male National Pipe Thread |
| Connection 2 - Size | 1-11 1/2 |
| Brand Series | Pipe Swivel |
| Shape | Elbow |
| Pipe Size | 1 in |
| End Connections | NPSM x MNPT |
| Production Category | 1 |
| End Connection Type | National Pipe Straight Mechanical Swivel by Male National Pipe Thread |

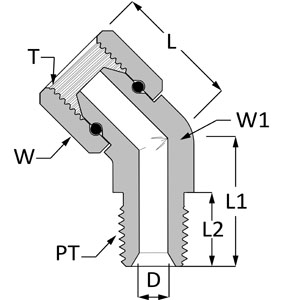

| D | 0.83 in |
| T | 1-11 1/2 |
| L | 1.51 in |
| L1 | 1.56 in |
| L2 | 0.94 in |
| PT | 1-11 1/2 |
| T1 | 1 11-1/2 |
| W Hex | 1 1/2 in |
| W1 Wrench Flat | 1 5/16 in |
