Part # PS32ME, Pipe Swivel 90° Male Elbow - Industrial Pipe Fittings

Attributes

Ssp Category	pipe-swivel-fittings-industrial-pipe-fittings
Ssp Subcategory	pipe-swivel-90-male-elbow-industrial-pipe-fittings
Part Number	ps16me-46-3

Description

Pipe Swivel Male Elbow, 1-11 1/2 NPSM x 1-11 1/2 MNPT, 316 SS

Specifications

Body Material	316 SS
Connection 1 - Type	Female Pipe Swivel
Connection 1 - Size	2-11 1/2
Connection 2 - Type	Male National Pipe Thread
Connection 2 - Size	2-11 1/2
Brand Series	Pipe Swivel
Shape	Elbow
Pipe Size	2 in
End Connections	NPSM x MNPT
Production Category	4
End Connection Type	National Pipe Straight Mechanical Swivel by Male National Pipe Thread

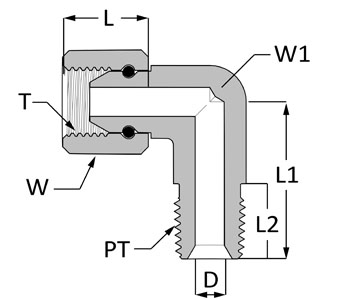

D	0.83 in
T	2 11-1/2
L	2.87 in
L1	3.37 in
L2	1.03 in
PT	2-11 1/2
W Hex	2 5/8 in
W1 Wrench Flat	2 1/2 in

PDF Documents

SSP Industrial Fittings Catalog Open PDF
