Attributes
| Ssp Category | pipe-swivel-fittings-industrial-pipe-fittings |
|---|---|
| Ssp Subcategory | pipe-swivel-90-straiight-thread-male-elbow-industr |
| Part Number | ps12ge |
Description
Pipe Swivel Male Swivel Elbow, 3/4-14 NPSM x 3/4-16 Male SAE, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Female Pipe Swivel |
| Connection 1 - Size | 3/4-14 |
| Connection 2 - Type | Male SAE Straight Thread |
| Connection 2 - Size | 3/4 in |
| Brand Series | Pipe Swivel |
| Shape | Elbow |
| Pipe Size | 3/4 in |
| End Connections | NPSM x Male SAE |
| Production Category | 4 |
| End Connection Type | National Pipe Straight Mechanical Swivel by Male SAE Straight Thread |

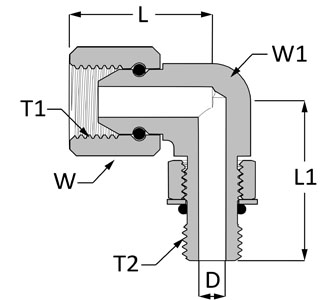

| D | 0.65 in |
| L | 1.57 in |
| L1 | 2.00 in |
| T1 | 3/4-14 |
| T2 | 1 1/16-12 |
| W Hex | 1 1/4 in |
| W1 Wrench Flat | 1 1/16 in |
PDF Documents
SSP Industrial Fittings Catalog
Open PDF
