Attributes
| Ssp Category | koncentrik--male-sae |
|---|---|
| Ssp Subcategory | koncentrik-sae-straight-thread-union |
| Part Number | a4kswgc |
Description
Koncentrik® Union; SAE Straight Thread Connector, 1/4 Tube Socket Weld x 7/16-20 Male SAE, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Tube Socket Weld |
| Connection 1 - Size | 1/4 in |
| Connection 2 - Type | Male SAE Straight Thread |
| Connection 2 - Size | 1/4 in |
| Brand Series | Koncentrik® Unions |
| Shape | Straight |
| PTFE Ring Size | 5TR |
| Tube Size | 1/4 |
| End Connections | Tube Socket Weld x Male SAE |
| Production Category | 1 |
| End Connection Type | Tube Socket Weld by Male SAE Straight Thread |

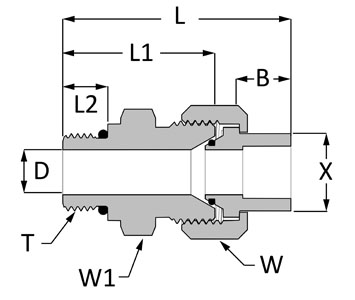

| D | 0.18 in |
| T | 7/16-20 |
| B | 0.28 in |
| L | 1.5 in |
| L1 | 1.06 in |
| L2 | 0.36 in |
| W Hex | 7/8 in |
| W1 Hex | 3/4 in |
| X | 0.5 in |
