Attributes
| Ssp Category | koncentrik--male-sae |
|---|---|
| Ssp Subcategory | koncentrik-sae-straight-thread-union-elbow |
| Part Number | a10kswge-1 |
Description
Koncentrik® Union; SAE Straight Thread 90° Elbow, 5/8 Tube Socket Weld x 7/8-14 Male SAE, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Tube Socket Weld |
| Connection 1 - Size | 5/8 in |
| Connection 2 - Type | Male SAE Straight Thread |
| Connection 2 - Size | 5/8 in |
| Brand Series | Koncentrik® Unions |
| Shape | Elbow |
| PTFE Ring Size | 12TR |
| Tube Size | 5/8 |
| End Connections | Tube Socket Weld x Male SAE |
| Production Category | 1 |
| End Connection Type | Tube Socket Weld by Male SAE Straight Thread |

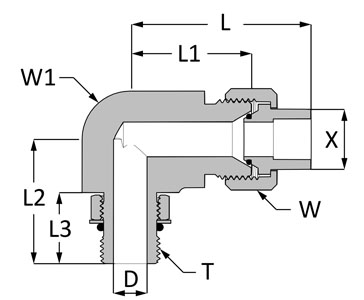

| D | 0.48 in |
| T | 7/8-14 |
| L | 2.16 in |
| L1 | 1.47 in |
| L2 | 1.69 in |
| L3 | 1.02 in |
| W | 1 1/4 in |
| W1 Wrench Flat | 1 1/16 in |
| X | 0.88 in |
