Part # ISST4TSME4, Tube Socket Weld Male Elbow - TruFit

Attributes

Ssp Category	trufit-weld-fittings-trufit
Ssp Subcategory	socket-weld-male-elbow-trufit
Part Number	isst4tsme4-1

Description

TruFit Socket Weld Male Elbow, 1/4 Tube Socket Weld x 1/4-18 MNPT, 316 SS

Specifications

Body Material	316 SS
Connection 1 - Type	Tube Socket Weld
Connection 1 - Size	1/4 in
Connection 2 - Type	Male National Pipe Thread
Connection 2 - Size	1/4-18
Brand Series	TruFit
Shape	Elbow
End Connections	Tube Socket Weld x MNPT
Production Category	1
End Connection Type	Tube Socket Weld by Male National Pipe Thread

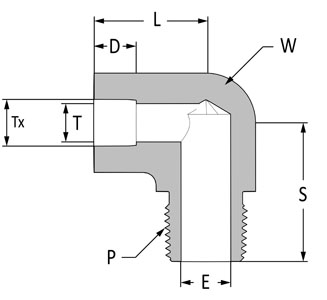

D	0.25 in
E	0.28 in
P	1/4-18 in
T	0.19 in
F Wrench Flat	9/16 in
L	0.66 in
L1	0.97 in
Tx	0.60 in
