Part # ISST4TSFE4, Socket Weld Female Elbow - TruFit

Attributes

Ssp Category	trufit-weld-fittings-trufit
Ssp Subcategory	socket-weld-female-elbow-trufit
Part Number	isst4tsfe4-1

Description

TruFit Socket Weld Female Elbow, 1/4 Tube Socket Weld x 1/4-18 FNPT, 316 SS

Specifications

Body Material	316 SS
Connection 1 - Type	Tube Socket Weld
Connection 1 - Size	1/4 in
Connection 2 - Type	Female National Pipe Thread
Connection 2 - Size	1/4-18
Brand Series	TruFit
Shape	Elbow
End Connections	Tube Socket Weld x FNPT
Production Category	1
End Connection Type	Tube Socket Weld by Female National Pipe Thread

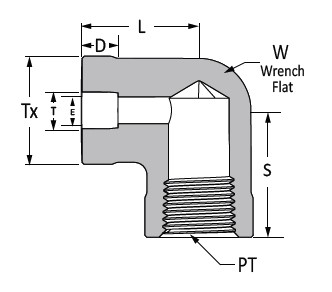

D	0.25 in
E	0.19 in
H	3/4 in
P	1/4 in
T	1/4 in
L	0.81 in
S	0.88 in
Tx	0.75 in

PDF Documents

TruFit - TruFit10K Pipe Fittings Catalog Open PDF
