Attributes
| Ssp Category | trufit-weld-fittings-trufit |
|---|---|
| Ssp Subcategory | tube-butt-weld-adapter-trufit |
| Part Number | ibt4mtts2-1 |
Description
TruFit Tube Butt Weld Adapter, 1/4 Tube Stub x 1/8 Tube Socket Weld, Brass
Specifications
| Body Material | Brass |
|---|---|
| Connection 1 - Type | Tube Stub |
| Connection 1 - Size | 1/4 in |
| Connection 2 - Type | Tube Socket Weld |
| Connection 2 - Size | 1/8 in |
| Brand Series | TruFit |
| Shape | Straight |
| End Connections | Tube Stub x Tube Socket Weld |
| Production Category | 4 |
| End Connection Type | Tube Socket Weld by Tube Stub Insert |

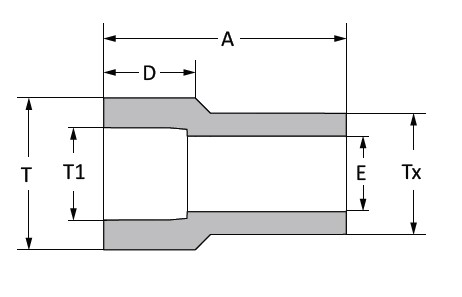

| A | 0.70 in |
| D | 0.16 in |
| E | 0.09 in |
| T | 1/4 in |
| T1 | 1/8 in |
| Tx | 0.25 in |
