Attributes
| Ssp Category | weld-braze-connectors-industrial-weld-fittings |
|---|---|
| Ssp Subcategory | socket-weld-male-connector-industrial-weld-fitti |
| Part Number | 16swc |
Description
Weld & Braze Adapters Socket Weld Male Connector, 1 Tube Socket Weld x 1-11 1/2 MNPT, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Tube Socket Weld |
| Connection 1 - Size | 1 in |
| Connection 2 - Type | Male National Pipe Thread |
| Connection 2 - Size | 1-11 1/2 |
| Brand Series | Weld & Braze Adapters |
| Shape | Straight |
| Tube OD | 1 in |
| End Connections | Tube Socket Weld x MNPT |
| Production Category | 1 |
| End Connection Type | Tube Socket Weld by Male National Pipe Thread |

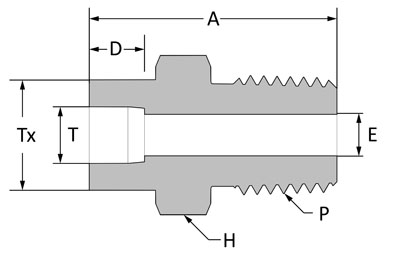

| E | 0.91 in |
| A | 2.00 in |
| P | 1 in |
| H Hex | 1 3/8 in |
| Tx | 1.36 in |
