Attributes
| Ssp Category | push-on-field-attachable-hose-fittings |
|---|---|
| Ssp Subcategory | push-on-x-female-37-swivel-connector-field-attacha |
| Part Number | h80250-12-12 |
Description
Field Attachable Female 37° Swivel Connector, 3/4 Female 37° Swivel x 3/4 Push-on, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Female SAE 37° Swivel |
| Connection 1 - Size | 3/4 in |
| Connection 2 - Type | Push-on Barb |
| Connection 2 - Size | 3/4 in |
| Brand Series | Field Attachable |
| Shape | Straight |
| Hose ID | 3/4 in |
| Tube OD | 3/4 in |
| End Connections | Female 37° Swivel x Push-on |
| Production Category | 1 |
| End Connection Type | Barb Push-on Hose by Female SAE 37° Flare Swivel |

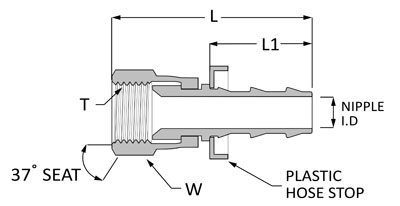

| T | 1 1/16-12 |
| L | 2.65 in |
| L1 | 1.50 in |
| Nipple ID | 0.61 in |
| W Hex | 1 1/4 in |
