Attributes
| Ssp Category | push-on-field-attachable-hose-fittings |
|---|---|
| Ssp Subcategory | barbed-hose-x-male-pipe-connector-field-attachable |
| Part Number | 1-2m2hc5-8-1 |
Description
Field Attachable Push-on Barb Male Pipe Connector, 1/2-14 MNPT x 5/8 Hose Barb (Hose ID), 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Male National Pipe Thread |
| Connection 1 - Size | 1/2-14 |
| Connection 2 - Type | Poly-Flex Tubing Barb (Hose ID) |
| Connection 2 - Size | 5/8 in |
| Brand Series | Field Attachable |
| Shape | Straight |
| Hose ID | 5/8 in |
| Barb OD | 0.725 in |
| End Connections | MNPT x Hose Barb (Hose ID) |
| Production Category | 1 |
| End Connection Type | Male National Pipe Thread by Poly Flex Tubing Barb |

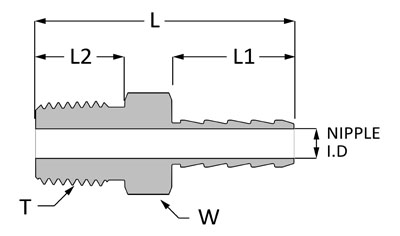

| T | 1/2-14 |
| L | 2.07 in |
| L1 | 0.94 in |
| L2 | 0.76 in |
| Nipple ID | 0.50 in |
| W Hex | 7/8 in |
