Attributes
| Ssp Category | push-on-field-attachable-hose-fittings |
|---|---|
| Ssp Subcategory | push-on-male-standpipe-field-attachable-hose-fit |
| Part Number | h80293-6-6-1 |
Description
Field Attachable Push-on Male Standpipe, 3/8 Tube Stub x 3/8 Push-on, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Tube Stub |
| Connection 1 - Size | 3/8 in |
| Connection 2 - Type | Push-on Barb |
| Connection 2 - Size | 3/8 in |
| Brand Series | Field Attachable |
| Shape | Straight |
| Hose ID | 3/8 in |
| Tube Size | 3/8 |
| End Connections | Tube Stub x Push-on |
| Production Category | 1 |
| End Connection Type | Barb Push-on Hose by SAE Flareless Tube Stub |

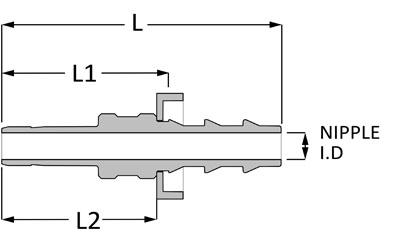

| L | 2.23 in |
| L1 | 1.36 in |
| L2 | 1.22 in |
| Nipple ID | 0.28 in |
