Attributes
| Ssp Category | sae-100r14-ptfe-fittings-field-attachable-hose-fit |
|---|---|
| Ssp Subcategory | ptfe-sae-100r14-x-female-37-swivel-connector-field |
| Part Number | ah90050-6-6-m-1 |
Description
Field Attachable Female 37° Swivel Connector, 3/8 Female 37° Swivel x 3/8 SAE 100R14, Alloy 400
Specifications
| Body Material | Alloy 400 |
|---|---|
| Connection 1 - Type | Female SAE 37° Swivel |
| Connection 1 - Size | 3/8 in |
| Connection 2 - Type | SAE 100R14 |
| Connection 2 - Size | 3/8 in |
| Brand Series | Field Attachable |
| Shape | Straight |
| Hose ID | 3/8 in |
| Nominal Hose OD | 3/8 in |
| End Connections | Female 37° Swivel x SAE 100R14 |
| Production Category | 4 |
| End Connection Type | 3pc Hose Ftg SAE 100R14 by Female SAE 37° Swivel |

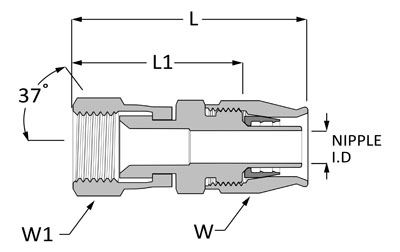

| T | 9/16-18 |
| L | 1.87 in |
| L1 | 1 3/8 in |
| Nipple ID | 0.26 in |
| W Hex | 11/16 in |
| W1 Hex | 11/16 in |
