Attributes
| Ssp Category | sae-mil-h-27267-ptfe-hose-fitting-field-attachable |
|---|---|
| Ssp Subcategory | ptfe-mil-h-27267-x-male-pipe-connector-field-attac |
| Part Number | ah92020-12-12-1 |
Description
Field Attachable Male Pipe Connector, 3/4-14 MNPT x 3/4 MIL-H-27267 (.040" Wall), 303 SS
Specifications
| Body Material | 303 SS |
|---|---|
| Connection 1 - Type | Male National Pipe Thread |
| Connection 1 - Size | 3/4-14 |
| Connection 2 - Type | MIL-H-27267 (.040" Wall) |
| Connection 2 - Size | 3/4 in |
| Brand Series | Field Attachable |
| Shape | Straight |
| Hose ID | 3/4 in |
| Nominal Hose OD | 3/4 in |
| End Connections | MNPT x MIL-H-27267 (.040" Wall) |
| Production Category | 4 |
| End Connection Type | 3pc Hose Ftg SAE MIL-H-27267 PTFE by Male National Pipe Thread |

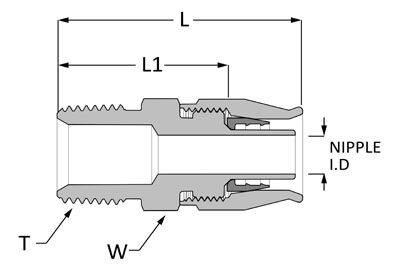

| T | 3/4-14 |
| L | 2.26 in |
| L1 | 1 19/32 in |
| Nipple ID | 0.59 in |
| W Hex | 1 1/8 in |
