| Ssp Category | sae-100r5-type-a-mandrel-style-hose-fittings-field |
|---|---|
| Ssp Subcategory | sae-100r5-mandrel-x-male-pipe-connector-field-atta |
| Part Number | ah20220-12-12-1 |
Description
Field Attachable Male Pipe Connector, 3/4-14 MNPT x 3/4 SAE 100R5 (mandrel), 316 Ss
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Male National Pipe Thread |
| Connection 1 - Size | 3/4-14 |
| Connection 2 - Type | SAE 100R5 (mandrel) |
| Connection 2 - Size | 3/4 in |
| Brand Series | Field Attachable |
| Shape | Straight |
| Hose ID | 3/4 in |
| End Connections | MNPT x SAE 100R5 (mandrel) |
| Production Category | 4 |
| End Connection Type | 2pc Hose Ftg SAE 100R5 by Male National Pipe Thread |

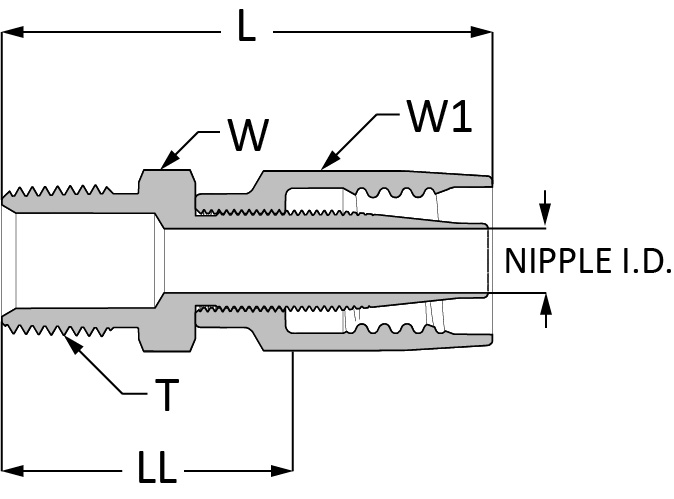

| T | 3/4-14 |
| L | 3.24 in |
| L1 | 1.67 in |
| Nipple ID | 0.55 in |
| W Hex | 1 1/16 in |
| W1 Hex | 1 1/4 in |
