Attributes
| Ssp Category | sae-100r12-type-a-hose-fittings |
|---|---|
| Ssp Subcategory | sae-100r12a-x-female-37-swivel-connector-field-att |
| Part Number | ah47750-6-6-m-1 |
Description
Field Attachable Female 37° Swivel Connector, 3/8 Female 37° Swivel x 3/8 SAE 100R2, Alloy 400
Specifications
| Body Material | Alloy 400 |
|---|---|
| Connection 1 - Type | Female SAE 37° Swivel |
| Connection 1 - Size | 3/8 in |
| Connection 2 - Type | SAE 100R12 TYPE A |
| Connection 2 - Size | 3/8 in |
| Brand Series | Field Attachable |
| Shape | Straight |
| Hose ID | 3/8 in |
| End Connections | Female 37° Swivel x SAE 100R2 |
| Production Category | 4 |
| End Connection Type | 2pc Hose Ftg SAE 100R12 Type A by Female SAE 37° Swivel |

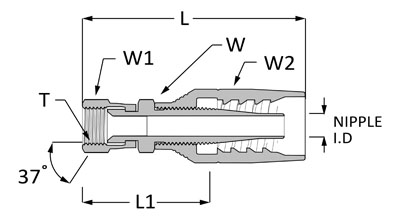

| T | 9/16-18 |
| L | 3.30 in |
| L1 | 1.68 in |
| Nipple ID | 0.30 in |
| W Hex | 11/16 in |
| W1 Hex | 11/16 in |
| W2 Hex | 1 in |
