Attributes
| Ssp Category | sae-100r2-type-a-din20022-type-2sn-hose-fittings-f |
|---|---|
| Ssp Subcategory | sae100r2at-x-female-soft-seal-nav-sea-field-attach |
| Part Number | ah30017-6-6-b-1 |
Description
Field Attachable Female O-Ring Face Seal, 3/8 Female Soft-Seal Nav-Sea x 3/8 SAE 100R2, Brass
Specifications
| Body Material | Brass |
|---|---|
| Connection 1 - Type | Nav-Sea Female O-ring Face Seal |
| Connection 1 - Size | 3/8 in |
| Connection 2 - Type | SAE 100R2 TYPE AT |
| Connection 2 - Size | 3/8 in |
| Brand Series | Field Attachable |
| Shape | Straight |
| Hose ID | 3/8 in |
| Tube OD | 3/8 in |
| End Connections | Female Soft-Seal Nav-Sea x SAE 100R2 |
| Production Category | 4 |
| End Connection Type | 2pc Hose Ftg SAE 100R2 by Nav-Sea O-ring Face Swivel |

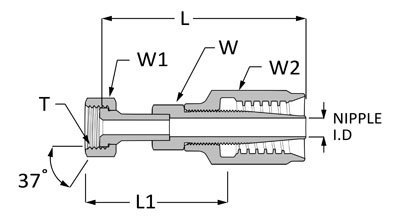

| T | 11/16-16 |
| L | 2.83 in |
| L1 | 1.62 in |
| Nipple ID | 0.27 in |
| W Hex | 9/16 in |
| W1 Hex | 13/16 in |
| W2 Hex | 15/16 in |
