Attributes
| Ssp Category | fb-series-multipurpose-ball-valves-1 |
|---|---|
| Ssp Subcategory | actuated-ball-valves-lfb-series-multipurpose-ball |
| Part Number | 36pss6-316-am15nc2-1 |
Description
FB Series Multipurpose Normally Open Actuated Ball Valve, Body Material: 316 SS, Seat Material: PEEK, 3/8 in. Female ORFS x 3/8 in. Female ORFS, Orifice: 0.25
Specifications
| Body Material | 316 SS |
|---|---|
| Category | Multipurpose |
| Connection 1 - Type | Female ORFS |
| Connection 1 - Size | 3/8 in. |
| Connection 2 - Type | Female ORFS |
| Connection 2 - Size | 3/8 in. |
| Brand Series | FB Series |
| Shape | 2-way |
| Cv | 2.5 |
| Orifice | 0.250 in6.35 mm |
| O-ring Material | FKM |
| Seat Material | PEEK |
| Actuation Type | Normally Open |
| Production Category | 3 |
| End Connection Type | SAE Female O-ring Face Seal Swivel |
| End Connections | FORF x FORF |
| Description Text | Multipurpose Ball Valve |

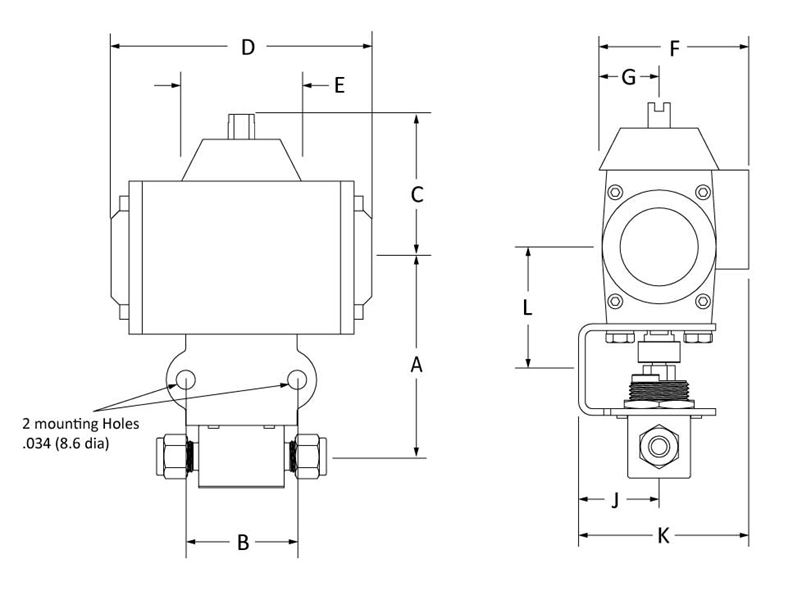

| A | 3.13 in79.5 mm |
| D | 4.68 in118.9 mm |
| E | 2.15 in54.6 mm |
| F | 2.62 in66.5 mm |
| G | 1.02 in25.9 mm |
| B | 2.00 in50.8 mm |
| J | 1.44 in36.6 mm |
| K | 3.04 in77.2 mm |
| L | 2.03 in51.6 mm |
