Attributes
| Ssp Category | tube-fitting-to-o-ring-seal-fitting-duolok |
|---|---|
| Ssp Subcategory | o-ring-seal-male-connector-duolok |
| Part Number | imd6omc4 |
Description
Duolok O-Ring Seal Male Connector, 3/8 Tube Fitting x 1/4-18 O-ring Seal Modified MNPT, Alloy 400
Specifications
| Body Material | Alloy 400 |
|---|---|
| Connection 1 - Type | Tube Fitting |
| Connection 1 - Size | 3/8 in |
| Connection 2 - Type | O-ring Seal Modified MNPT |
| Connection 2 - Size | 1/4-18 |
| Brand Series | Duolok |
| Shape | Straight |
| O-ring Material | Nitrile Buna Rubber |
| End Connections | TF x O-ring Seal Modified MNPT |
| Production Category | 4 |
| End Connection Type | Duolok Tube End by Short Male NPT O-ring Port |

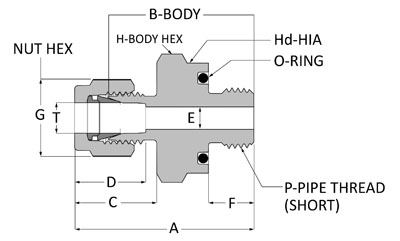

| A | 1.57 in |
| C | 0.76 in |
| D | 0.66 in |
| E | 0.28 in |
| F | 0.38 in |
| G | 11/16 in |
| H | 15/16 in |
| P | 1/4 in |
| T | 3/8 in |
| AS568 O-Ring Uniform Size Number | -113 |
| B | 1.28 in |
| Hd | 0.93 in |
