Attributes
| Ssp Category | tube-fitting-to-weld-fitting-duolok |
|---|---|
| Ssp Subcategory | male-pipe-weld-elbow-duolok |
| Part Number | issd12mpwe12-1 |
Description
Duolok Male Pipe Weld Elbow, 3/4 Tube Fitting x 3/4 Pipe Stub, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Tube Fitting |
| Connection 1 - Size | 3/4 in |
| Connection 2 - Type | Pipe Stub |
| Connection 2 - Size | 3/4 in |
| Brand Series | Duolok |
| Shape | Elbow |
| End Connections | TF x Pipe Stub |
| Production Category | 1 |
| End Connection Type | Duolok Tube End by Pipe Stub Weld |

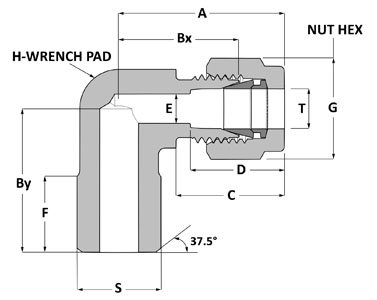

| A | 1.57 in |
| Bx | 1.17 in |
| By | 1.45 in |
| C | 0.86 in |
| D | 0.96 in |
| E | 0.62 in |
| F | 0.75 in |
| G | 1 1/8 in |
| H | 1 1/16 in |
| T | 3/4 in |
| S | 1.050 in |
