Part # 43G4PM-316-BL, Encapsulated 2-way Ball Valves

Scraped SKU: ssp-43g4pm-316-bl-1 2026-06-05 01:30:09

Attributes

Ssp Categoryves-ball-valves-eb-series-encapsulated-ball-valves
Ssp Subcategorysulated-ball-valves-encapsulated-2-way-ball-valves
Part Number43g4pm-316-bl-1

Description

EB Series 2-way Ball Valves, 316 SS, 1/4-18 MNPT x 1/4-18 MNPT, Cv: 1.20, Packing: Modified PTFE, Handle: Blue Nylon - w/SS Insert

Specifications

Body Material316 SS
Connection 1 - TypeMNPT
Connection 1 - Size1/4-18 in
Connection 2 - TypeMNPT
Connection 2 - Size1/4-18 in
Brand SeriesEB Series
Shape2-way
Cv1.20
Orifice0.187 in4.7498 mm
Hardware.
Working Pressure3000 psig206 bar
Packing MaterialModified PTFE
Temperature-65 to 300 ºF-53 to 148 ºC
Actuation Type.
Production Category2
End Connection TypeMale National Pipe Thread
End ConnectionsMNPT x MNPT
Description TextOne Piece Ball Valve

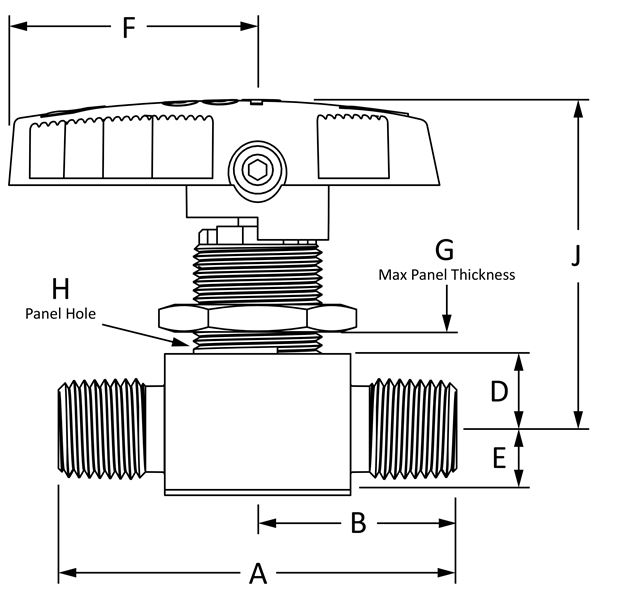

A2.00 in50.8 mm
D0.44 in11.2 mm
E0.38 in9.7 mm
F1.43 in36.3 mm
G3/16 in4.8 mm
H25/32 in19.8 mm
B1.00 in25.4 mm
J1.53 in38.8 mm

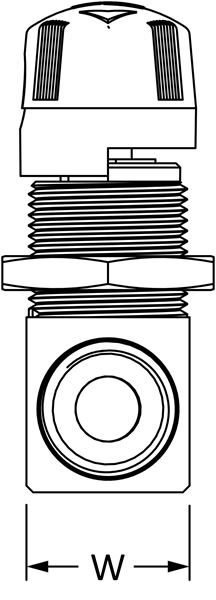

W0.78 in
