Attributes
| Ssp Category | tube-fitting-to-an-fitting-duolok |
|---|---|
| Ssp Subcategory | an-bulkhead-union-duolok |
| Part Number | issd16anbu16-1-1 |
Description
Duolok Bulkhead AN Bulkhead Union, 1 Tube Fitting x 1 Male AN, Brass
Specifications
| Body Material | Brass |
|---|---|
| Connection 1 - Type | Tube Fitting |
| Connection 1 - Size | 1 in |
| Connection 2 - Type | Male SAE 37° Flared |
| Connection 2 - Size | 1 in |
| Brand Series | Duolok |
| Shape | Straight |
| Specialty | Bulkhead |
| End Connections | TF x Male AN |
| Production Category | 4 |
| End Connection Type | Duolok Tube Stub by Male 37° Flare |

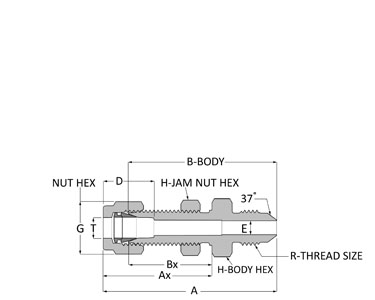

| A | 3.64 in |
| Bx | 1.78 in |
| D | 1.23 in |
| E | 0.84 in |
| G | 1 1/2 in |
| H | 1 5/8 in |
| T | 1 in |
| AN Tube Flare Size | 1 |
| Ax | 2.26 in |
| B | 3.16 in |
| Maximum Panel Thickness | 0.75 in |
| Panel Hole Drill Size | 1 21/64 in |
| R - Thread Size | 1 5/16-12 UNF-2 |
