High Pressure Trunnion Ball Valves · High Pressure Trunnion Ball Valves 2 Way

Part # H83P4PF-316, High-Pressure Trunnion Ball Valves 2-Way

Scraped SKU: ssp-h83p4pf-316-1 2026-06-05 01:31:16

Attributes

Ssp Categoryhigh-pressure-trunnion-ball-valves
Ssp Subcategoryhigh-pressure-trunnion-ball-valves-2-way
Part Numberh83p4pf-316-1

Description

HTB Series High-Pressure 2-way, 1/4-18 FNPT x 1/4-18 FNPT, 316 SS, Orifice: 0.187, Seat Material: PEEK,, Black Nylon - w/SS Insert, O-Ring: FKM.

Specifications

Body Material316 SS
Connection 1 - TypeFNPT
Connection 1 - Size1/4-18
Connection 2 - TypeFNPT
Connection 2 - Size1/4-18
Brand SeriesHTB Series
Shape2-way
Cv1.0
Orifice0.187 in
Seat MaterialPEEK
Production Category1
End Connection TypeFemale National Pipe Thread

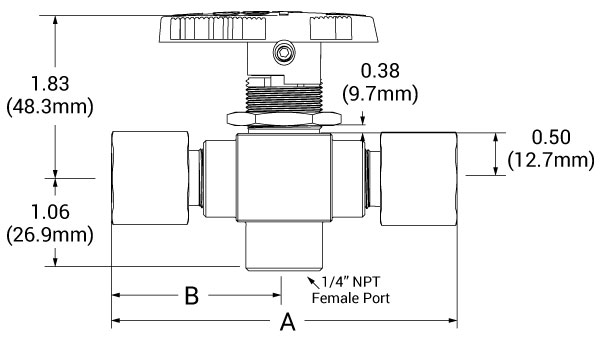

A2.94 in
B1.47 in

PDF Documents

TB Series Trunnion Ball Valve Catalog Open PDF
TB Series Cross Reference Open PDF
TB-Series-Trunnion-Ball-Valves-maintenance-instructions Open PDF
ABS Certifications Open PDF
Actuated-Ball-Valves-Catalog Open PDF
EB, FB & TB Series Actuated Ball Valve Mounting Bracket Instructions Open PDF
EB-TB-and-FB-Series-Ball-Valve-Locking-Device-Installation-Instructions Open PDF
TB---TBX-Ball-valve-Maintenance-Istructions Open PDF
