Attributes
| Ssp Category | low-temperature-trunnion-ball-valves |
|---|---|
| Ssp Subcategory | low-temperature-trunnion-ball-valves-3-way |
| Part Number | l83xp6pf-316 |
Description
LTB Series Low Temperature 3-way, 3/8-18 FNPT x 3/8-18 FNPT x 1/4-18 FNPT, 316 SS, Orifice: 0.187, Seat Material: PEEK, Black Nylon - w/SS Insert, O-Ring: Nitrile.
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | FNPT |
| Connection 1 - Size | 3/8-18 |
| Connection 2 - Type | FNPT |
| Connection 2 - Size | 3/8-18 |
| Connection 3 - Type | FNPT |
| Connection 3 - Size | 1/4-18 |
| Brand Series | LTB Series |
| Shape | 3-way |
| Cv | 0.75 |
| Orifice | 0.187 in |
| O-ring Material | Nitrile Buna Rubber |
| Seat Material | PEEK |
| Production Category | 1 |
| End Connection Type | Female National Pipe Thread |

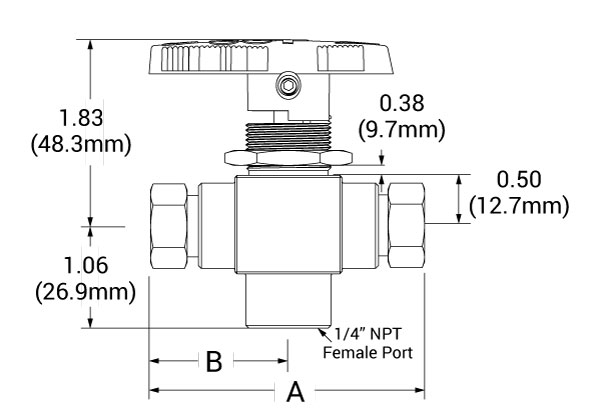

| A | 3.19 in |
| B | 1.6 in |
