Attributes
| Ssp Category | 300-series-general-purpose-ball-valves |
|---|---|
| Ssp Subcategory | 2-way-general-purpose-ball-valves |
| Part Number | 312-316 |
Description
300 Series 2-way Ball Valves, 1/4 in. Duolok Tube Fitting x 1/4 in. Duolok Tube Fitting, 316 SS, Orifice: 0.187, Seat Material: PTFE, Handle: Black
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Duolok Tube Fitting |
| Connection 1 - Size | 1/4 |
| Connection 2 - Type | Duolok Tube Fitting |
| Connection 2 - Size | 1/4 |
| Brand Series | 300 Series |
| Shape | 2-way |
| Orifice | 0.187 in4.75 mm |
| Stem Type | Standard |
| End Connection Type | Duolok Tube End |
| O-ring Material | FKM |
| Seat Material | PTFE |
| End Connections | TF x TF |
| Production Category | 1 |
| Stem Material | 316 SS |

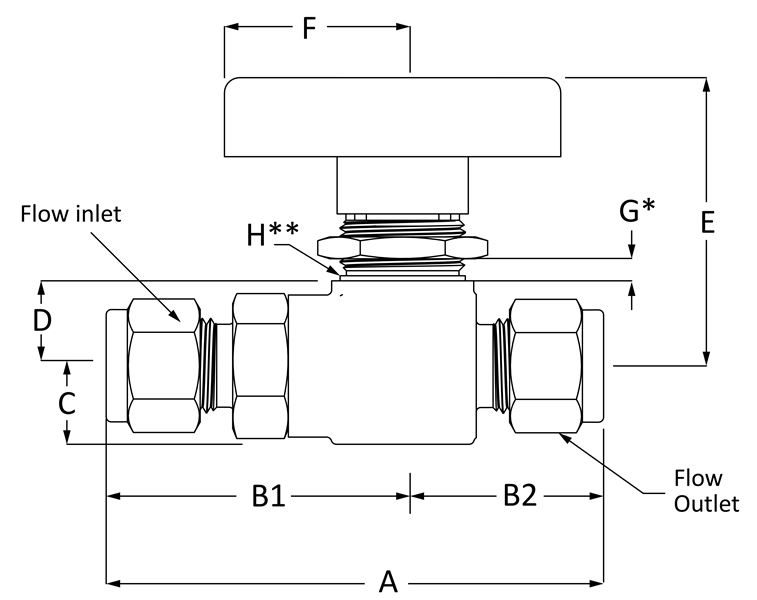

| A | 2.76 in70.01 mm |
| C | 0.47 in11.9 mm |
| D | 0.51 in12.9 mm |
| E | 1.71 in43.4 mm |
| F | 1.06 in26.9 mm |
| G | 0.19 in4.8 mm |
| H | 25/32 in19.8 mm |
| B1 | 1.62 in41.1 mm |
| B2 | 1.14 in |
