Attributes
| Ssp Category | 300-series-general-purpose-ball-valves |
|---|---|
| Ssp Subcategory | 2-way-general-purpose-ball-valves |
| Part Number | 355-316 |
Description
300 Series 2-way Ball Valves, 1/8-27 FNPT x 1/8-27 MNPT, 316 SS, Orifice: 0.125, Seat Material: PTFE, Handle: Black
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | FNPT |
| Connection 1 - Size | 1/8-27 |
| Connection 2 - Type | MNPT |
| Connection 2 - Size | 1/8-27 |
| Brand Series | 300 Series |
| Shape | 2-way |
| Orifice | 0.125 in, 3.18 mm |
| Stem Type | Standard |
| End Connection Type | Female National Pipe Thread by Male National Pipe Thread |
| O-ring Material | FKM |
| Seat Material | PTFE |
| End Connections | FNPT x MNPT |
| Production Category | 4 |
| Stem Material | 316 SS |

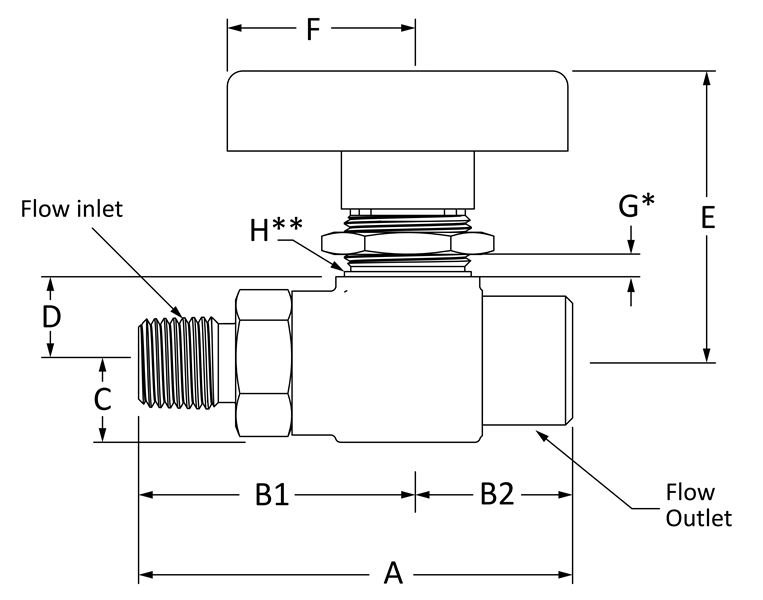

| A | 1.93 in, 49 mm |
| C | 0.4 in, 10.1 mm |
| D | 0.38 in, 9.7 mm |
| E | 1.33 in, 33.7 mm |
| F | 0.94 in, 23.8 mm |
| G | 0.25 in, 6.4 mm |
| H | 19/32 in, 15.1 mm |
| B1 | 1.15 in, 29.2 mm |
| B2 | 0.78 in |
