Attributes
| Ssp Category | 300-series-general-purpose-ball-valves |
|---|---|
| Ssp Subcategory | 3-way-general-purpose-ball-valves |
| Part Number | 351-3-k-316-nh |
Description
300 Series 3-way Ball Valves, 1/8-27 FNPT x 1/8-27 FNPT x 1/8-27 FNPT, 316 SS, Orifice: 0.125, Seat Material: PCTFE, Handle: No Handle
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | FNPT |
| Connection 1 - Size | 1/8-27 |
| Connection 2 - Type | FNPT |
| Connection 2 - Size | 1/8-27 |
| Connection 3 - Type | FNPT |
| Connection 3 - Size | 1/2 |
| Brand Series | 300 Series |
| Shape | 3-way |
| Orifice | 0.13 in3.18 mm |
| O-ring Material | FKM |
| Seat Material | PCTFE |
| Production Category | 2 |
| Stem Material | 316 SS |

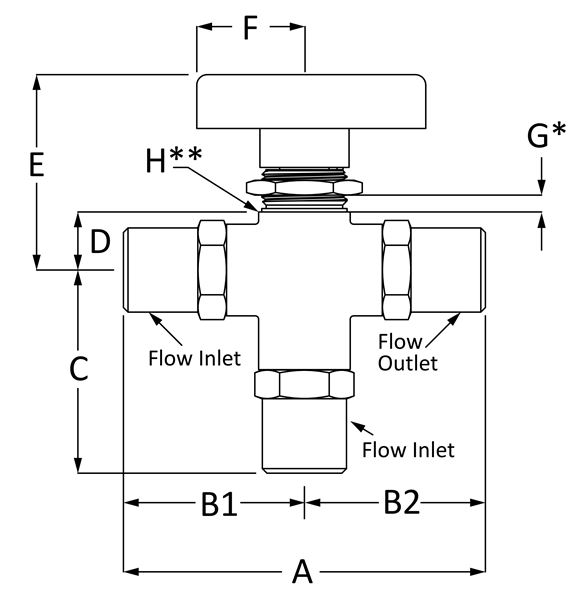

| A | 2.3 in5.83 mm |
| C | 1.33 in33.7 mm |
| D | 0.38 in9.5 mm |
| E | 1.27 in32.2 mm |
| F | 0.94 in23.9 mm |
| G | 0.25 in6.4 mm |
| H | 19/32 in15.1 mm |
| B1 | 1.15 in29.2 mm |
| B2 | 1.15 in |
