Attributes
| Ssp Category | -ball-valves-gp-series-general-purpose-ball-valves |
|---|---|
| Ssp Subcategory | category-10973 |
| Part Number | item-139244 |
Description
GP Series-Live Loaded 2-way, 3/4 in. Duolok Tube Fitting x 3/4 in. Duolok Tube Fitting; 316 SS , Peek Seats-Live Loaded, O-ring: Nitrile, Cv 6.42, Handle: Red Nylon-Stainless Steel Insert Insert, Locking Hardware.
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Duolok Tube Fitting |
| Connection 1 - Size | 3/4 |
| Connection 2 - Type | Duolok Tube Fitting |
| Connection 2 - Size | 3/4 |
| Shape | 2-way |
| Orifice | 0.406 in |
| Cv | 6.42 |
| Seat Material | (Reinforced) PEEK- Live Loaded |
| End Connections | TF x TF |
| Production Category | 2 |
| Specialty | Locking Device |
| Product Descriptions | Duolok Tube End Ball Valve |
| Description Text | General Purpose Ball Valve |
| Metric Sizing | No |

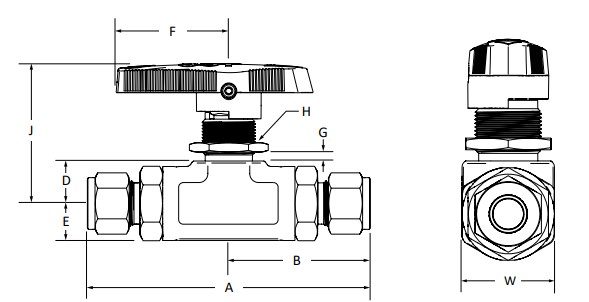

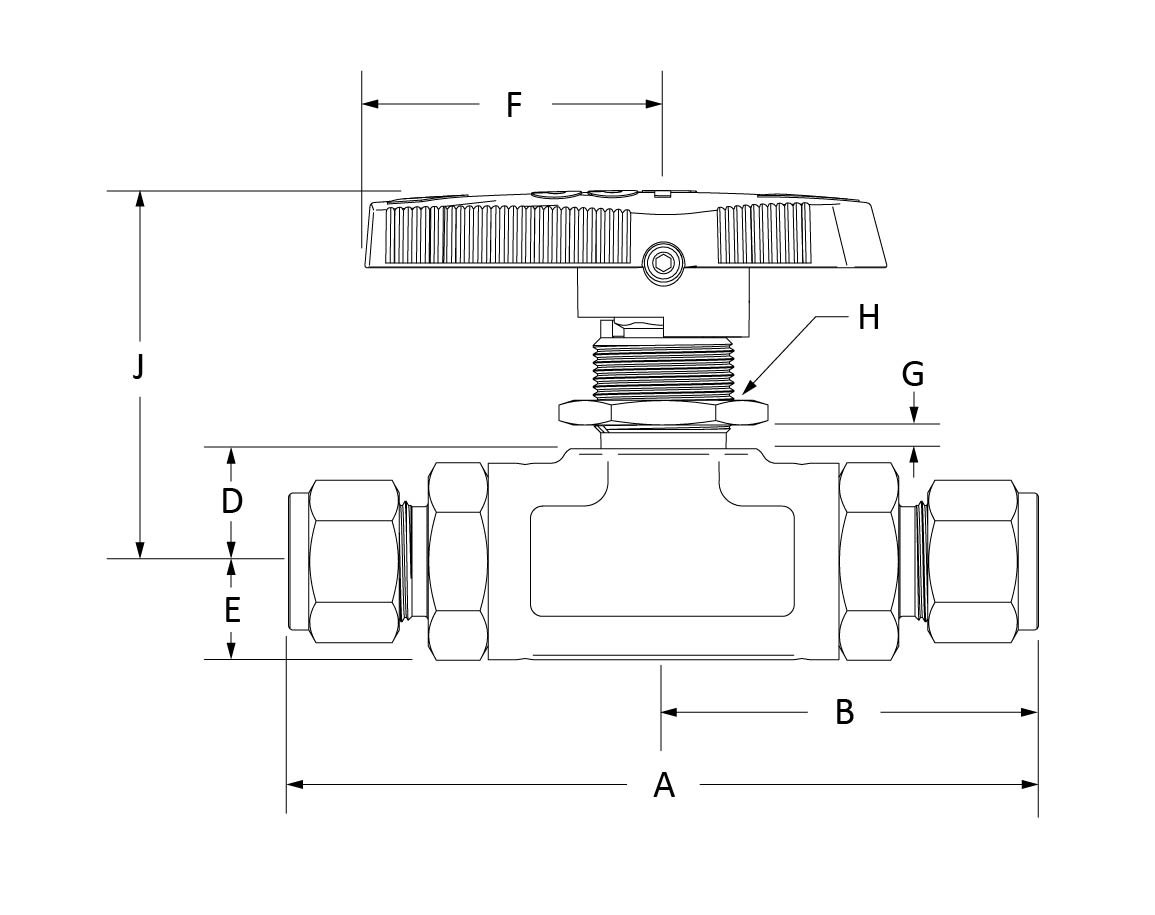

| A | 4.66 in |
| B | 2.33 in |
| D | 0.70 in |
| E | 0.61 in |
| F | 1.86 in |
| G | 7/16 in |
| H | 29/32 in |
| J | 2.31 in |
| W | 1.22 in |
