Attributes
| Ssp Category | check-valves |
|---|---|
| Ssp Subcategory | high-pressure-check-valves |
| Part Number | ch4-4pm4pf-5-316 |
Description
CH Series Check Valve, 316 SS, 1/4 in MNPT x 1/4 in FNPT Cracking Pressure: 5 psig, O-ring Material FKM
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | MNPT |
| Connection 1 - Size | 1/4 in |
| Connection 2 - Type | FNPT |
| Connection 2 - Size | 1/4 in |
| Brand Series | CH Series |
| Cv | 0.60 |
| O-ring Material | FKM |
| End Connections | MNPT x FNPT |
| Cracking Pressure | 5 psig |
| Production Category | 1 |
| Product Descriptions | Male to Female NPT Check Valve |
| End Connection Type | Male National Pipe Thread by Female National Pipe Thread |
| Stem Type | 0 |
| Stem Material | 0 |

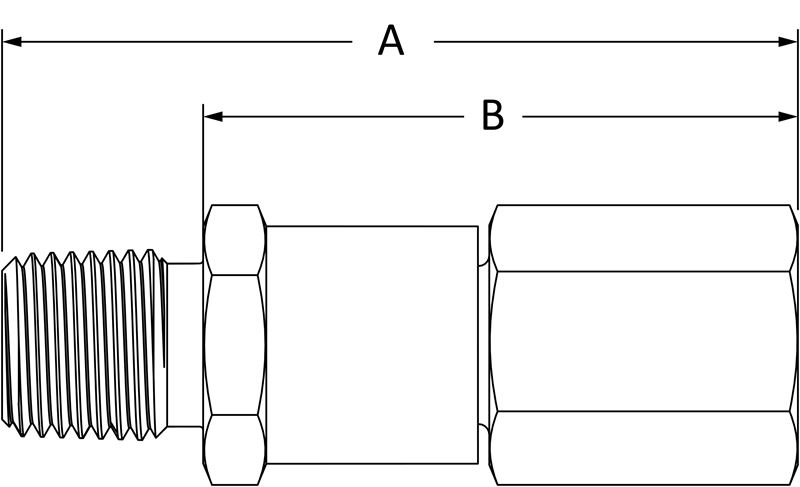

| A | 2.26 in |
| B | 1.03 in |
| Hex | 11/16 in |
