Attributes
| Ssp Category | check-valves |
|---|---|
| Ssp Subcategory | check-valves-medium-pressure |
| Part Number | 4cp4pf4pm-10-316-1-1 |
Description
CP Series Poppet Check Valves, 1/4 in FNPT x 1/4 in MNPT, 316 SS, Cv: 0.35, Cracking Pressure: 1/3 psig
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | FNPT |
| Connection 1 - Size | 1/4 in |
| Connection 2 - Type | MNPT |
| Connection 2 - Size | 1/4 in |
| Brand Series | CP Series |
| Shape | Straight |
| Cv | 0.35 |
| O-ring Material | FKM |
| Cracking Pressure | 1/3 psig |
| Working Pressure | 3000 psig206 bar |
| Temperature | -10 to 375 ºF-23 to 190 ºC |
| Production Category | 1 |
| Product Descriptions | Female to Male NPT Check Valve |
| End Connection Type | Female National Pipe Thread by Male National Pipe Thread |
| Stem Type | 0 |
| Stem Material | 0 |

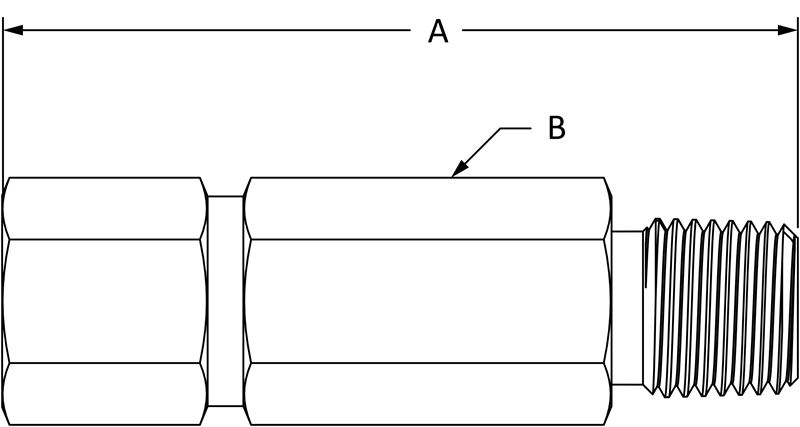

| A | 2.29 in58.2 mm |
| B | 3/4 in |
