Check Valves · Check Valves Medium Pressure Adjustable

Part # 4CPA4PF-150-B, Poppet Check Valves -Adjustable Cracking Pressure

Scraped SKU: ssp-4cpa4pf-150-b 2026-06-05 01:32:10

Attributes

Ssp Categorycheck-valves
Ssp Subcategorycheck-valves-medium-pressure-adjustable
Part Number4cpa4pf-150-b

Description

CPA Series Straight Check Valves, FNPT 1/4-18 FNPT x 1/4-18 FNPT, Brass, Cracking Pressure: 150 to 350, Cv: 0.35

Specifications

Body MaterialBrass
Connection 1 - TypeFNPT
Connection 1 - Size1/4 in
Connection 2 - TypeFNPT
Connection 2 - Size1/4 in
Brand SeriesCPA Series
ShapeStraight
Stem Type0
O-ring MaterialFKM
End ConnectionsFNPT x FNPT
Cracking Pressure150 to 350 psig
Working Pressure3000 psig206 bar
Temperature-15 to 350 -10 to 250 ºF-23 to 121 ºC
Production Category1
Product DescriptionsFemale NPT Check Valve
Cv0.35
End Connection TypeFemale National Pipe Thready by Female National Pipe Thread
Stem Material0

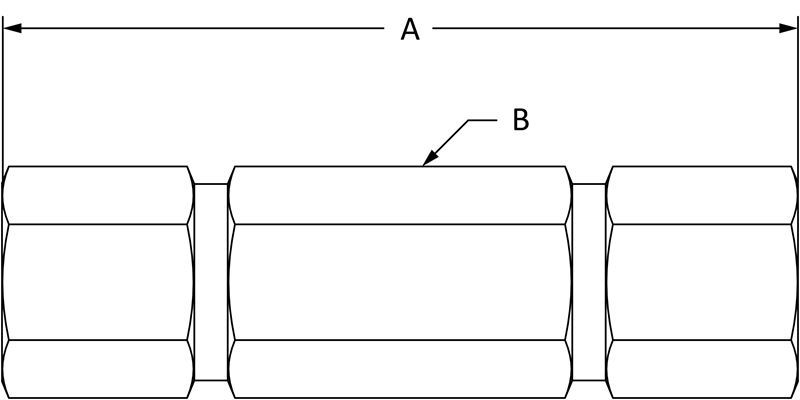

A2.98 in75.7 mm
B3/4 in

PDF Documents

CP - CPA Series Check Valves Catalog Open PDF
CPA Series Cracking Pressure Adjustment Instructions. Open PDF
ABS Certifications Open PDF
