Attributes
| Ssp Category | check-valves |
|---|---|
| Ssp Subcategory | check-valves-medium-pressure-adjustable |
| Part Number | 8cpa8mrt-3-b |
Description
CPA Series Straight Check Valves, Male BSPT 1/2-14 Male BSPT x 1/2 Male BSPT,Brass, Cracking Pressure: 3 to 50, Cv: 1.20
Specifications
| Body Material | Brass |
|---|---|
| Connection 1 - Type | Male BSPT |
| Connection 1 - Size | 1/2 in |
| Connection 2 - Type | Male BSPT |
| Connection 2 - Size | 1/2 in |
| Brand Series | CPA Series |
| Shape | Straight |
| Stem Type | 0 |
| O-ring Material | FKM |
| End Connections | Male BSPT x Male BSPT |
| Cracking Pressure | 3 to 50 psig |
| Working Pressure | 3000 psig206 bar |
| Temperature | -15 to 350 -10 to 250 ºF-23 to 121 ºC |
| Production Category | 1 |
| Product Descriptions | Male ISO Tapered Check Valve |
| Cv | 1.20 |
| End Connection Type | Male British Standard Pipe Tapered |
| Stem Material | 0 |

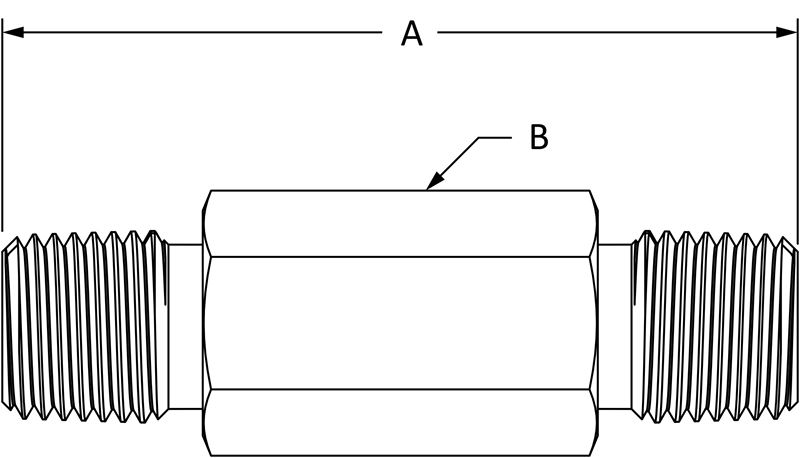

| A | 2.56 in65.0 mm |
| B | 7/8 in |
