Attributes
| Ssp Category | locked-bonnet-needle-valves |
|---|---|
| Ssp Subcategory | needle-valves-locked-bonnet-needle-valves-straight |
| Part Number | ln4m-4sw-316 |
Description
LN Series Locked Bonnet Needle Valves - Straight, Body: 316 SS, 1/4 in. Tube Socket Weld x 1/4 in. Tube Socket Weld, Orifice: 0.156, Stem: Chrome-Plated 316 SS Non-Rotating Metering, Handle: Stainless Steel T-Bar, Packing: PTFE.
Specifications
| Body Material | 316 SS |
|---|---|
| Inlet Type | Tube Socket Weld |
| Inlet Size | 1/4 in |
| Outlet Type | Tube Socket Weld |
| Outlet Size | 1/4 in |
| Brand Series | LN Series |
| Shape | Straight |
| Connects | Tube Weld to Tube Weld |
| Cv | 0.34 |
| Orifice | 0.156 in, 4.0 mm |
| Stem Type | Non-Rotating Metering |
| Working Pressure | 6000 psig, 413 bar |
| SSP P/N | LN4M-4SW-316 |
| Packing Material | PTFE |
| Stem Material | Chrome-Plated 316 SS |
| Production Category | 1 |
| Product Descriptions | Tube Socket Weld Needle Valve |
| Description Text | Locked Bonnet Needle Valves |

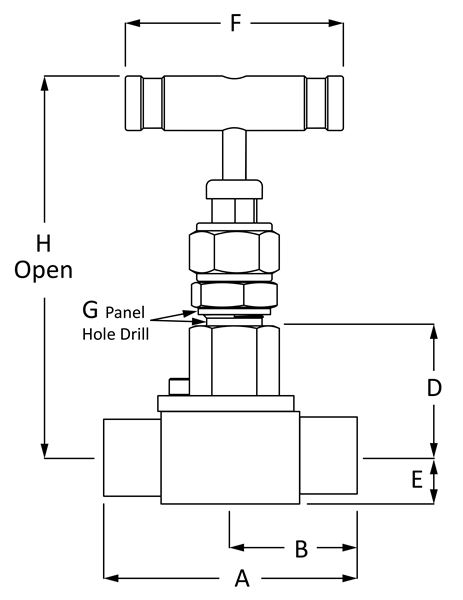

| A | 1.85 in, 0 mm |
| D | 1.09 in, 27.7 mm |
| E | 0.41 in, 10.4 mm |
| F | 1.75 in, 44.5 mm |
| G | 9/16 in, 14.3 mm |
| H | 3.22 in |
| B | 0.93 in, 23.6 mm |
