Attributes
| Ssp Category | locked-bonnet-needle-valves |
|---|---|
| Ssp Subcategory | locked-bonnet-needle-valves-angle |
| Part Number | ln4ak-4pm-4pf-316 |
Description
LN Series Locked Bonnet Needle Valves - Angle, Body: 316 SS, 1/4-18 MNPT x 1/4-18 FNPT, Orifice: 0.156, Stem: Chrome-Plated 316 SS Non-Rotating Soft Seal (PCTFE), Handle: Stainless Steel T-Bar, Packing: PTFE.
Specifications
| Body Material | 316 SS |
|---|---|
| Inlet Type | MNPT |
| Inlet Size | 1/4-18 |
| Outlet Type | FNPT |
| Outlet Size | 1/4-18 |
| Brand Series | LN Series |
| Shape | Angle |
| Cv | 0.34 |
| Orifice | 0.156 in4.0 mm |
| Stem Type | Non-Rotating Soft Seal (PCTFE) |
| Packing Material | PTFE |
| Stem Material | Chrome-Plated 316 SS |
| Production Category | 4 |
| Product Descriptions | Male to Female NPT Needle Valve |

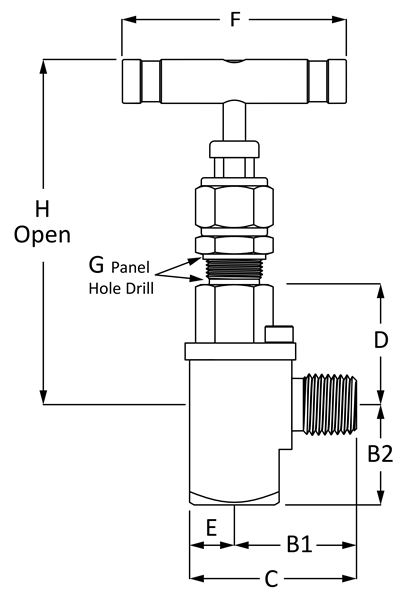

| A | 2.50 in63.5 mm |
| C | 1.3 in33 mm |
| D | 1.09 in27.7 mm |
| E | 0.41 in10.4 mm |
| F | 1.75 in44.5 mm |
| G | 9/16 in14.3 mm |
| H | 3.22 in |
| B1 | 0.89 in22.6 mm |
| B2 | 1 in |
