Attributes
| Ssp Category | integral-bonnet-needle-valves |
|---|---|
| Ssp Subcategory | angle-needle-valves |
| Part Number | a603-3-316 |
Description
600 Series Angle Integral Bonnet Needle Valve; 1/4-18 MNPT x 1/4-18 FNPT; 0.201 Orifice; 316 SS; PTFE Packing; Vee Type Shutoff, Handle: Black Nylon - Brass Insert.
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | MNPT |
| Connection 1 - Size | 1/4-18 |
| Connection 2 - Type | FNPT |
| Connection 2 - Size | 1/4-18 |
| Brand Series | 600 Series |
| Shape | Angle |
| Orifice | 0.201 in |
| Stem Type | Vee Type Shutoff |
| End Connection Type | Male National Pipe Thread by Female National Pipe Thread |
| End Connections | MNPT x FNPT |
| Packing Material | PTFE |
| Stem Material | Chrome-Plated 316 SS |
| Production Category | 1 |

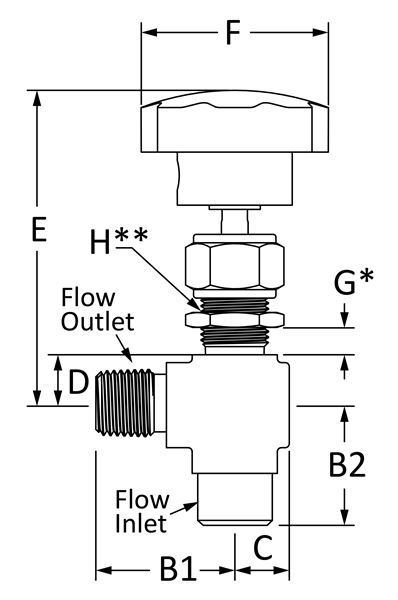

| A | 2 in |
| C | 0.44 in |
| D | 0.44 in |
| E | 2.61 in |
| F | 1.38 in |
| G | 0.38 in |
| H | 17/32 in |
| B1 | 1 in |
| B2 | 1 in |
