Attributes
| Ssp Category | integral-bonnet-needle-valves |
|---|---|
| Ssp Subcategory | straight-needle-valves |
| Part Number | 105-b-u |
Description
100 Series Straight Integral Bonnet Needle Valve; 1/8-27 MNPT x 1/8 in. Unilok Tube Fitting; 0.063 Orifice; Brass; PTFE Packing; Vee Type Shutoff, Handle: Black Nylon - Brass Insert.
Specifications
| Body Material | Brass |
|---|---|
| Connection 1 - Type | MNPT |
| Connection 1 - Size | 1/8-27 |
| Connection 2 - Type | Unilok Tube Fitting |
| Connection 2 - Size | 1/8 in. |
| Brand Series | 100 Series |
| Shape | Straight |
| Orifice | 0.063 in |
| Stem Type | Vee Type Shutoff |
| End Connection Type | Male National Pipe Thread by Unilok Tube End |
| End Connections | MNPT x TF |
| Packing Material | PTFE |
| Stem Material | Chrome-Plated 316 SS |
| Production Category | 4 |

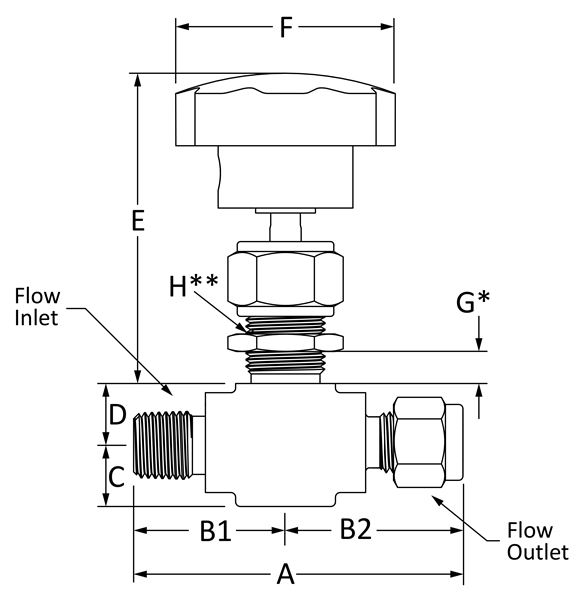

| A | 2.08 in |
| C | 0.40 in |
| D | 0.38 in |
| E | 2.55 in |
| F | 1.38 in |
| G | 0.38 in |
| H | 17/32 in |
| B1 | 0.91 in |
| B2 | 1.17 in |
