Attributes
| Ssp Category | lower-packing-needle-valves |
|---|---|
| Ssp Subcategory | angle-lower-packing-needle-valves |
| Part Number | a438-316 |
Description
400 Series Lower Packing Needle Valves Angle, Body Material: 316 SS, 3/8-18 FNPT x 3/8-18 FNPT, Packing Material: PTFE, Orifice: 0.250, Stem: Plated 316 SS Vee Type Shutoff, Handle: Black Phenolic- Brass Insert
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | FNPT |
| Connection 1 - Size | 3/8-18 |
| Connection 2 - Type | FNPT |
| Connection 2 - Size | 3/8-18 |
| Brand Series | 400 Series |
| Shape | Angle |
| Orifice | 0.250 in, 6.4 mm |
| Stem Type | Vee Type Shutoff |
| End Connection Type | Female National Pipe Thread |
| End Connections | FNPT x FNPT |
| Packing Material | PTFE |
| Production Category | 4 |
| Stem Material | Plated 316 SS |

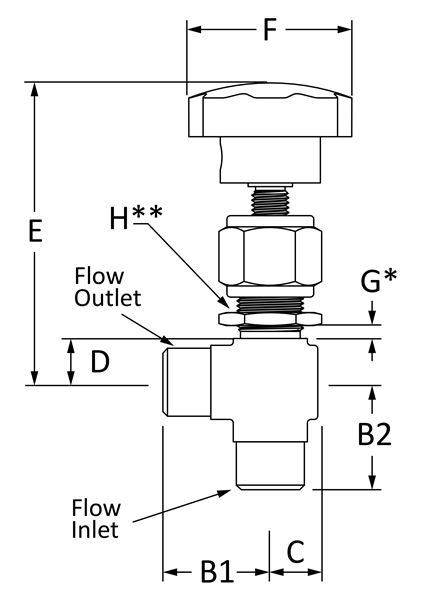

| A | 2.50 in, 63.5 mm |
| C | 0.74 in, 18.8 mm |
| D | 0.75 in, 19.05 mm |
| E | 2.87 in, 72.9 mm |
| F | 1.75 in, 44.5 mm |
| G | 0.25 in, 6.4 mm |
| H | 19/32 in |
| Inlet Size | 3/8 |
| B1 | 1.25 in, 31.8 mm |
| B2 | 1.25 in |
