Attributes
| Ssp Category | lower-packing-needle-valves |
|---|---|
| Ssp Subcategory | straight-lower-packing-needle-valves |
| Part Number | 408-316 |
Description
400 Series Lower Packing Needle Valves Straight, Body Material: 316 SS, 1/8-27 FNPT x 1/8-27 FNPT, Packing Material: PTFE, Orifice: 0.172, Stem: Plated 316 SS Vee Type Shutoff, Handle: Black Phenolic- Brass Insert
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | FNPT |
| Connection 1 - Size | 1/8-27 |
| Connection 2 - Type | FNPT |
| Connection 2 - Size | 1/8-27 |
| Brand Series | 400 Series |
| Shape | Straight |
| Orifice | 0.172 in4.4 mm |
| Stem Type | Vee Type Shutoff |
| End Connection Type | Female National Pipe Thread |
| End Connections | FNPT x FNPT |
| Packing Material | PTFE |
| Stem Material | Plated 316 SS |
| Production Category | 4 |

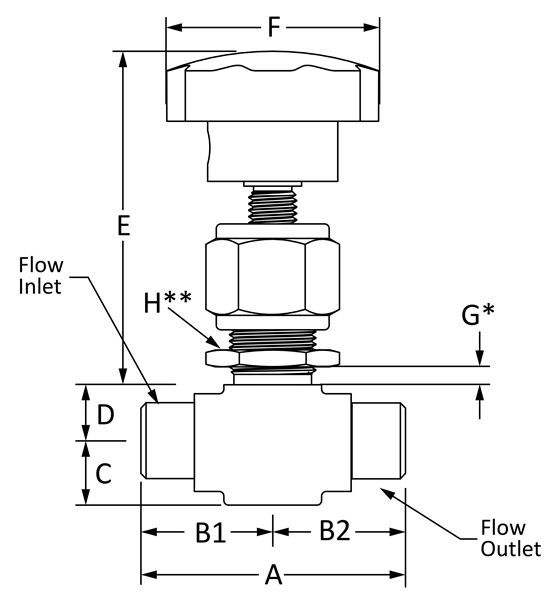

| A | 1.82 in46.2 mm |
| C | 0.40 in10.2 mm |
| D | 0.375 in9.525 mm |
| E | 2.50 in63.5 mm |
| F | 1.38 in34.9 mm |
| G | 0.25 in6.4 mm |
| H | 19/32 in |
| Inlet Size | 1/8 |
| B1 | 0.09 in2.3 mm |
| B2 | 0.09 in |
