Attributes
| Ssp Category | lower-packing-needle-valves |
|---|---|
| Ssp Subcategory | straight-lower-packing-needle-valves |
| Part Number | 428-316-1 |
Description
400 Series Lower Packing Needle Valves Straight, Body Material: 316 SS, 3/8 in. Duolok Tube Fitting x 3/8 in. Duolok Tube Fitting, Packing Material: PTFE, Orifice: 0.172, Stem: 316 SS w/PCTFE Tip Soft Seal Shutoff, Handle: Black Phenolic- Brass Insert
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Duolok Tube Fitting |
| Connection 1 - Size | 3/8 in. |
| Connection 2 - Type | Duolok Tube Fitting |
| Connection 2 - Size | 3/8 in. |
| Brand Series | 400 Series |
| Shape | Straight |
| Orifice | 0.172 in4.4 mm |
| Stem Type | Soft Seal Shutoff |
| End Connection Type | Duolok Tube End |
| End Connections | TF x TF |
| Packing Material | PTFE |
| Stem Material | 316 SS w/PCTFE Tip |
| Production Category | 4 |

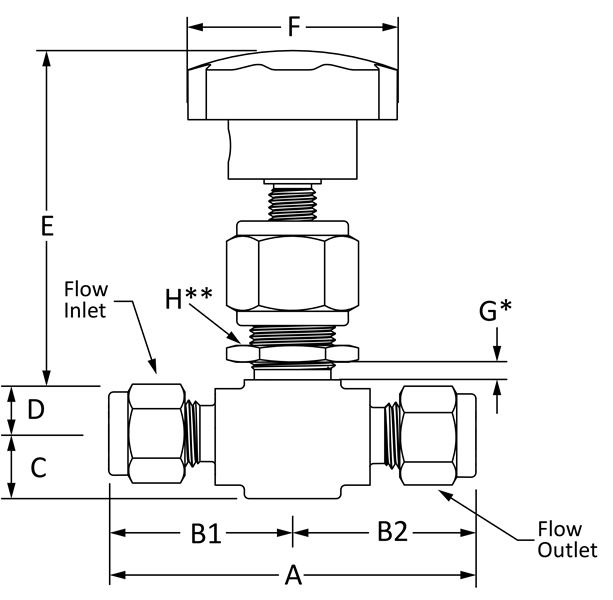

| A | 2.40 in61.0 mm |
| C | 0.40 in10.2 mm |
| D | 0.397 in10.0838 mm |
| E | 2.50 in63.5 mm |
| F | 1.38 in34.9 mm |
| G | 0.25 in6.4 mm |
| H | 19/32 in |
| Inlet Size | 3/8 |
| B1 | 1.2 in30.4 mm |
| B2 | 1.2 in |
