Metering Valves · Straight Metering Valves

Part # 514-13-316-RD, Straight Metering Valves

Scraped SKU: ssp-514-13-316-rd 2026-06-05 01:32:44

Attributes

Ssp Categorymetering-valves
Ssp Subcategorystraight-metering-valves
Part Number514-13-316-rd

Specifications

Body Material316 SS
Connection 1 - TypeFNPT
Connection 1 - Size1/4-18
Connection 2 - TypeFNPT
Connection 2 - Size1/4-18
Brand Series500 Series
ShapeStraight
Orifice0.250 in6.4 mm
Stem Type10° Angle Stem
Packing MaterialPTFE
Production Category2
Stem MaterialStainless Steel
B2_NUM1.15 in
B0 in0 mm
H_TXT25/32

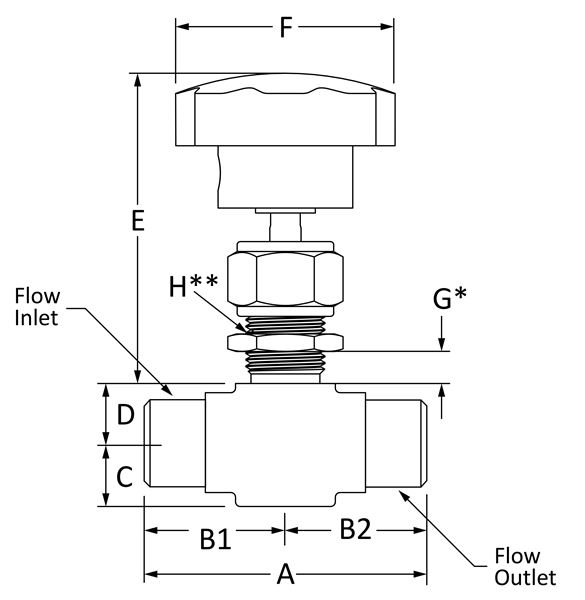

A2.3 in58.4 mm
C0.4 in10.2 mm
D0.38 in9.7 mm
E3.22 in81.8 mm
F1.38 in3.50 mm
G0.38 in9.7 mm
H25/32 in13.5 mm
B11.15 in29.2 mm
B21.15 in

PDF Documents

SSP Valves Catalog Open PDF
ABS Certifications Open PDF
500-Series-Metering-Vernier-Micrometer-Installation-Instruction Open PDF
100-600-500-Series-Valve-Maintenance-Instructions Open PDF
