Attributes
| Ssp Category | valves |
|---|---|
| Ssp Subcategory | toggle-valves |
| Part Number | a215 |
Description
200 Series Angle Brass Toggle Valve, 1/4-18 FNPT x 1/4-18 FNPT, Orifice: 0.125, Brass Toggle Handle, Stem: 316 SS w/PTFE Tip Soft Seal Shutoff
Specifications
| Body Material | Brass |
|---|---|
| Inlet Type | FNPT |
| Inlet Size | 1/4-18 |
| Outlet Type | FNPT |
| Outlet Size | 1/4-18 |
| Brand Series | 200 Series |
| Shape | Angle |
| Orifice | 0.125 in, 3.2 mm |
| Stem Type | Soft Seal Shutoff |
| End Connection Type | FNPT |
| O-ring Material | FKM |
| End Connections | FNPT x FNPT |
| Working Pressure | 200 psig, 13.8 bar |
| Temperature | -20 to 200 ºF, -29 to 93 ºC |
| Production Category | 4 |
| Product Descriptions | Female NPT Toggle Valve |

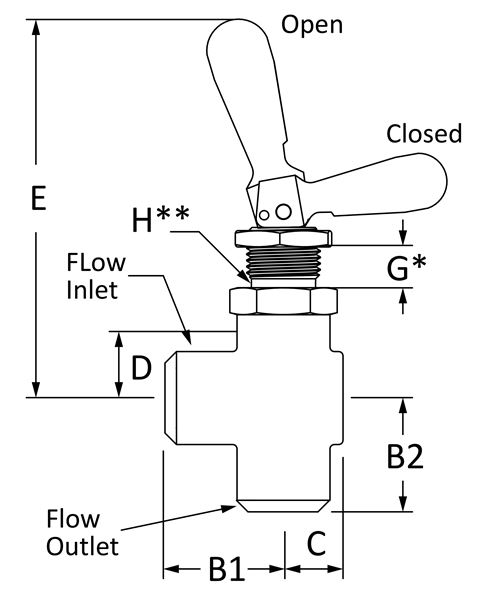

| A | 2.00 in, 3.2 mm |
| C | 0.40 in, 10.2 mm |
| D | 0.38 in, 9.7 mm |
| E | 2.34 in, 59.4 mm |
| F | 1.12 in, 28.4 mm |
| G | 0.25 in, 6.35 mm |
| H | 17/32 in, 13.5 mm |
| B1 | 1 in, 25.4 mm |
| B2 | 1 in |
