Attributes
| Ssp Category | valves |
|---|---|
| Ssp Subcategory | bleed-valves |
| Part Number | bv4mst-316 |
Description
BV Series Angle High-Pressure Bleed Valve, 316 SS, 7/16-20 Male SAE, Cv: 0.25, 3/16 No Vent, No Handle
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Male SAE |
| Connection 1 - Size | 7/16-20 |
| Brand Series | BV Series |
| Shape | Angle |
| Seat Material | 316 SS |
| End Connections | Male SAE |
| Working Pressure | 4570 psig315 bar |
| Vent Size | 3/16 in |
| Production Category | 2 |
| Product Descriptions | Male SAE Straight Thread Bleed Valve |
| End Connection Type | Male SAE Straight Thread |
| Stem Type | Standard |
| Stem Material | 316 SS |
| Cv | 0.25 |

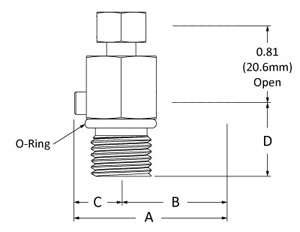

| A | 1.34 in34.0 mm |
| C | 0.41 in10.4 mm |
| D | 0.69 in17.5 mm |
| B | 0.94 in23.9 mm |
