Attributes
| Ssp Category | valves |
|---|---|
| Ssp Subcategory | bleed-valves |
| Part Number | bv6pm-m |
Description
BV Series Angle High-Pressure Bleed Valve, Alloy 400, 3/8-18 MNPT, Cv: 0.25, 3/16 Tube Stub Vent, No Handle
Specifications
| Body Material | Alloy 400 |
|---|---|
| Connection 1 - Type | MNPT |
| Connection 1 - Size | 3/8-18 |
| Brand Series | BV Series |
| Shape | Angle |
| Seat Material | 316 SS |
| End Connections | MNPT |
| Vent Size | 3/16 in |
| Production Category | 4 |
| Product Descriptions | Male NPT Bleed Valve |
| End Connection Type | Male National Pipe Thread |
| Stem Type | Standard |
| Stem Material | 316 SS |
| Cv | 0.25 |

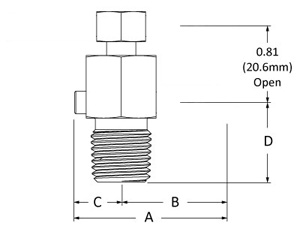

| A | 1.47 in37.3 mm |
| C | 0.44 in11.2 mm |
| D | 0.88 in22.4 mm |
| B | 1.03 in26.2 mm |
