Attributes
| Ssp Category | proportional-relief-valves |
|---|---|
| Ssp Subcategory | proportional-relief-valves-low-pressure |
| Part Number | rl34pmd4-316-ep-1 |
Description
Valve, Proportional Relief, Low Pressure, Body Material: 316 SS, 1/4 in MNPT x 1/4 in Duolok Tube Fitting, Seal Material: EPDM, Working Pressure: 300, Temperature: -40 to 250
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | MNPT |
| Connection 1 - Size | 1/4-18 |
| Connection 2 - Type | Duolok Tube Fitting |
| Connection 2 - Size | 1/4 in |
| Brand Series | RL Series |
| Orifice | 0.19 in4.8 mm |
| Seal Material | EPDM |
| Set Pressure Range | 10 to 225 psig0.7 to15.5 bar |
| Working Pressure | 300 psig20.6 bar |
| Temperature | -40 to 250 ºF-40 to 121 ºC |
| Production Category | 1 |
| Product Descriptions | Male NPT to Duolok Tube Fitting Proportional Relief Valve |
| End Connection Type | Male National Pipe Thread by Duolok Tube End |

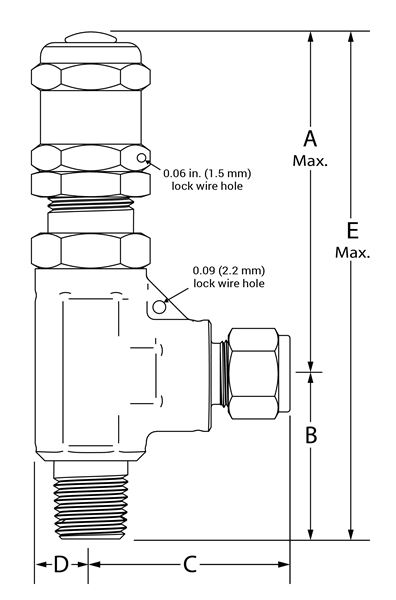

| A Max | 2.70 in68.6 mm |
| C | 1.60 in40.6 mm |
| D | 0.41 in10.4 mm |
| E Max | 4.14 in105 mm |
| B | 1.19 in30.2 mm |
