Attributes
| Ssp Category | proportional-relief-valves |
|---|---|
| Ssp Subcategory | proportional-relief-valves-low-pressure |
| Part Number | rl48pmd8-316-bn |
Description
Valve, Proportional Relief, Low Pressure, Body Material: 316 SS, 1/2 in MNPT x 1/2 in Duolok Tube Fitting, Seal Material: Nitrile, Working Pressure: 300, Temperature: -10 to 250
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | MNPT |
| Connection 1 - Size | 1/2-14 |
| Connection 2 - Type | Duolok Tube Fitting |
| Connection 2 - Size | 1/2 in |
| Brand Series | RL Series |
| Orifice | 0.25 in6.4 mm |
| Seal Material | Nitrile Buna Rubber |
| Set Pressure Range | 10 to 225 psig0.7 to15.5 bar |
| Working Pressure | 300 psig20.6 bar |
| Temperature | -10 to 250 ºF-23 to 121 ºC |
| Production Category | 1 |
| Product Descriptions | Male NPT to Duolok Tube Fitting Proportional Relief Valve |
| End Connection Type | Male National Pipe Thread by Duolok Tube End |

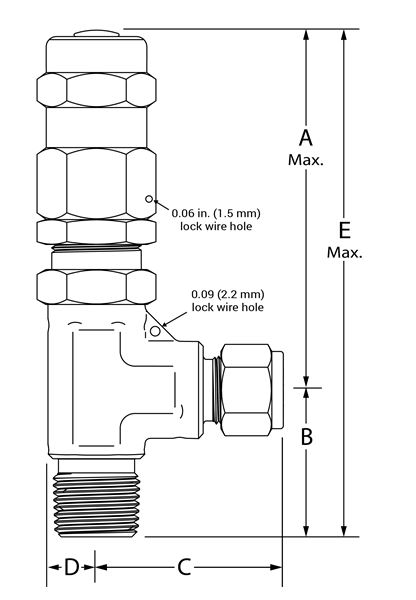

| A Max | 4.09 in104 mm |
| C | 1.83 in46.5 mm |
| D | 0.47 in11.9 mm |
| E Max | 5.52 in140.2 mm |
| B | 1.43 in36.3 mm |
