Attributes
| Ssp Category | proportional-relief-valves |
|---|---|
| Ssp Subcategory | proportional-relief-valves-low-pressure |
| Part Number | rl4dm12-316 |
Description
Valve, Proportional Relief, Low Pressure, Body Material: 316 SS, 12 mm Duolok Tube Fitting x 12 mm Duolok Tube Fitting, Seal Material: FKM, Working Pressure: 300, Temperature: 10 to 275
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Duolok Tube Fitting |
| Connection 1 - Size | 12 mm |
| Connection 2 - Type | Duolok Tube Fitting |
| Connection 2 - Size | 12 mm |
| Brand Series | RL Series |
| Orifice | 0.25 in6.4 mm |
| Seal Material | FKM |
| Set Pressure Range | 10 to 225 psig0.7 to15.5 bar |
| Working Pressure | 300 psig20.6 bar |
| Temperature | 10 to 275 ºF-12 to 135 ºC |
| Production Category | 1 |
| Product Descriptions | Duolok Tube End Proportional Relief Valve |
| End Connection Type | Duolok Tube End |

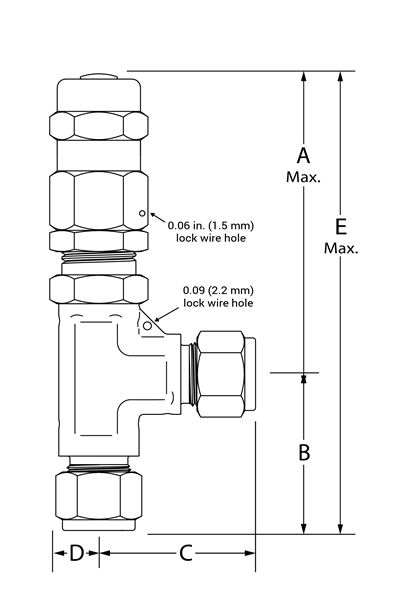

| A Max | 4.09 in104 mm |
| C | 1.83 in46.5 mm |
| D | 0.47 in11.9 mm |
| E Max | 5.92 in150 mm |
| B | 1.83 in46.5 mm |
