Attributes
| Ssp Category | proportional-relief-valves |
|---|---|
| Ssp Subcategory | proportional-relief-valves-high-pressure |
| Part Number | rh48pm8pf-316 |
Description
Valve, Proportional Relief, High Pressure, Body Material: 316 SS, 1/2 in MNPT x 1/2 in FNPT, Seal Material: FKM, Working Pressure: 6000, Temperature: 25 to 275
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | MNPT |
| Connection 1 - Size | 1/2-14 |
| Connection 2 - Type | FNPT |
| Connection 2 - Size | 1/2-14 |
| Brand Series | RH Series |
| Orifice | 0.25 in6.4 mm |
| O-ring Material | FKM |
| Set Pressure Range | 50 to 1500 psig3.4 to 103 bar |
| Working Pressure | 6000 psig413 bar |
| Temperature | 25 to 275 ºF-4 to 135 ºC |
| Production Category | 1 |
| Product Descriptions | Male to Female NPT Proportional Relief Valve |
| End Connection Type | Male National Pipe Thread by Female National Pipe Thread |

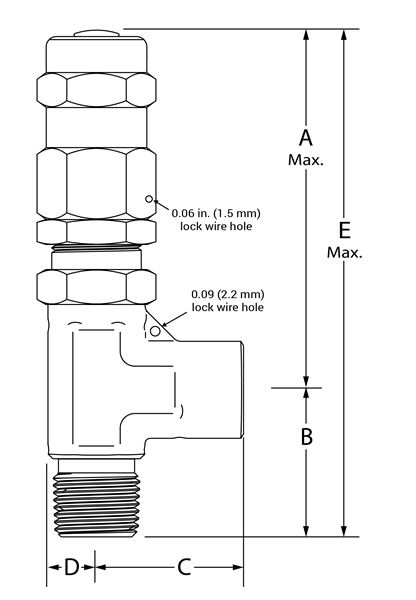

| A Max | 4.09 in104 mm |
| C | 1.43 in36.3 mm |
| D | 0.47 in11.9 mm |
| E Max | 5.52 in140 mm |
| B | 1.43 in36.3 mm |
