Attributes
| Ssp Category | special-alloy-needle-valves |
|---|---|
| Ssp Subcategory | cial-alloys-integral-bonnet-needle-valves-straight |
| Part Number | 603-2-m |
Description
600 Series Straight Integral Bonnet Needle Valve, End Connections: 1/4 in MNPT x 1/4 in FNPT, Orifice: 0.172, Body Material: Alloy 400, Packing Material: PTFE, Stem: Vee Type Shutoff, Handle: Black Nylon - Brass Insert, Working Pressure @100°F: 6000
Specifications
| Body Material | Alloy 400 |
|---|---|
| Connection 1 - Type | MNPT |
| Connection 1 - Size | 1/4 in |
| Connection 2 - Type | FNPT |
| Connection 2 - Size | 1/4 in |
| Brand Series | 600 Series |
| Shape | Straight |
| Orifice | 0.172 in |
| Stem Type | Vee Type Shutoff |
| End Connection Type | Male National Pipe Thread by Female National Pipe Thread |
| End Connections | MNPT x FNPT |
| Packing Material | PTFE |
| Production Category | 3 |

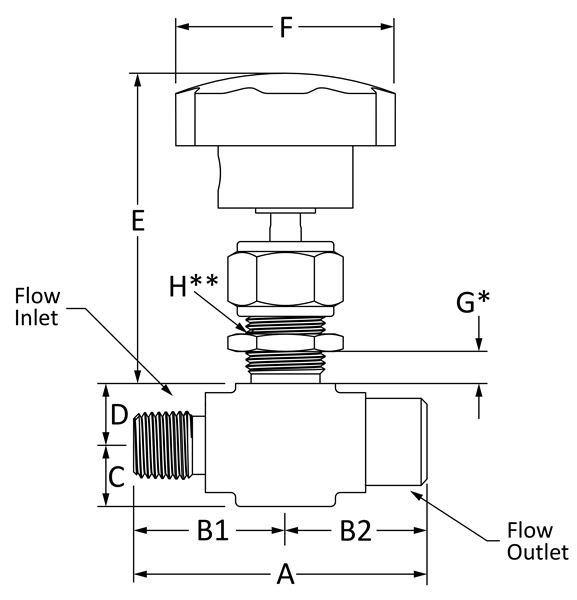

| A | 2 in |
| C | 0.44 in |
| D | 0.44 in |
| E | 2.61 in |
| F | 1.38 in |
| G | 0.38 in |
| H | 17/32 in |
| B1 | 1 in |
| B2 | 1 in |
